Perfectly filled with ViscoTec!
ViscoTec filling pumps fulfill the demanding and strict requirements of the pharmaceutical, food and cosmetics industries. Solid-containing and sensitive materials are filled absolutely shear-sensitive and industrial processes are optimized. Even abrasive materials can be filled highly precise. Our filling pumps can be easily integrated into already excisting processes and systems.
With our technology you achieve a reliable, exact and automatic filling from a few microlitres to around 1 litre per second, depending on the material. Our portfolio can handle viscous flavorings, high-viscosity semi-solids in the pharmaceutical sector, chunky jam and many other fluids & pastes.
High-precision filling pumps with programmable suck-back function
Accurate, clean, automatic and repeatable: For precise material handling and exact compliance with the filling amount.
- Volume flow: from 0.2 ml/min – 116 l/min (depends on mixing ratio and viscosity)
- Smallest filling quantity: 0.1 ml
- Area of application: Filling, process dosing
1-component filling pumps
- Dosing volume: 20 ml/rev to 200 ml/rev (or even much higher, depending on the cycle rate)
- Max. volume flow: 14 l/min
- Suitable for lumpy materials up to 20 mm in diameter
- Easy integration in existing systems and plants
- Easy & fast cleaning

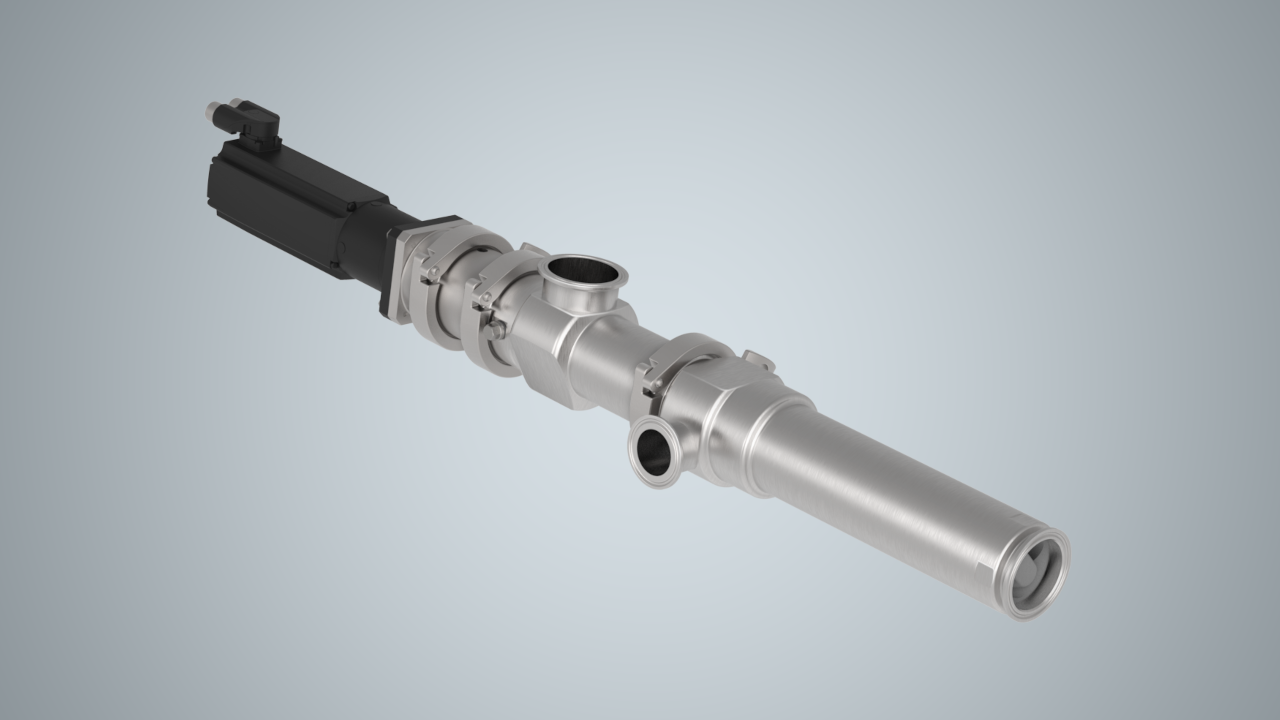

The vipura-PUMP 10T is suitable for dosing and filling of food and pharmaceuticals, as well as household products and cosmetics. Find everything else in our product news.
Or in the YouTube video.

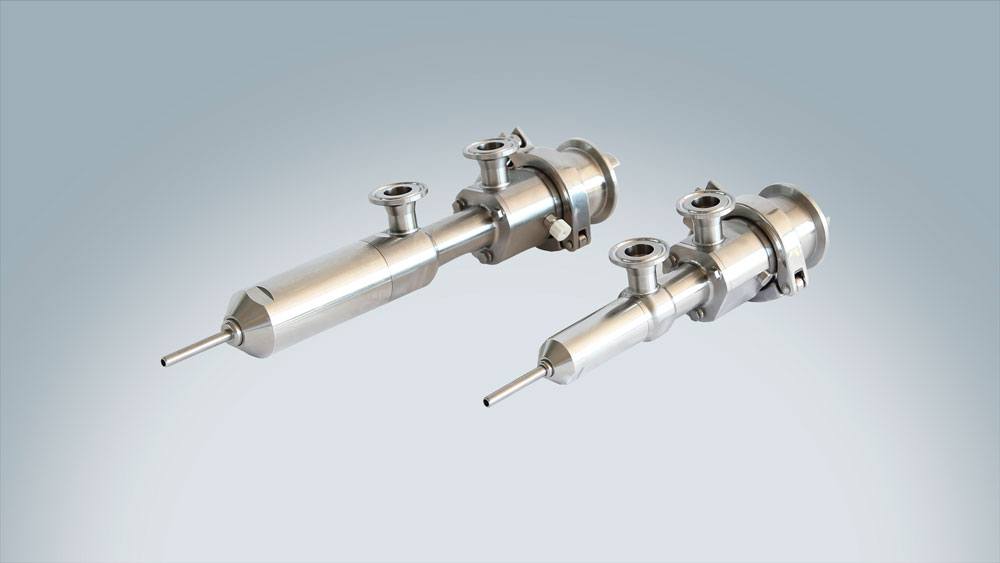

Hygienic Dispenser VHD
- Dosing volume: 0.1 ml/rev to 5.1 ml/rev
- Volume flow: 0.2 ml/min to 800.0 ml/min
- Design according to EHEDG guidelines
- Cleaning in installed condition
Here you can find further information about the VHD filling pump.
Hygienic Dispenser VPHD
RD series hygienic design

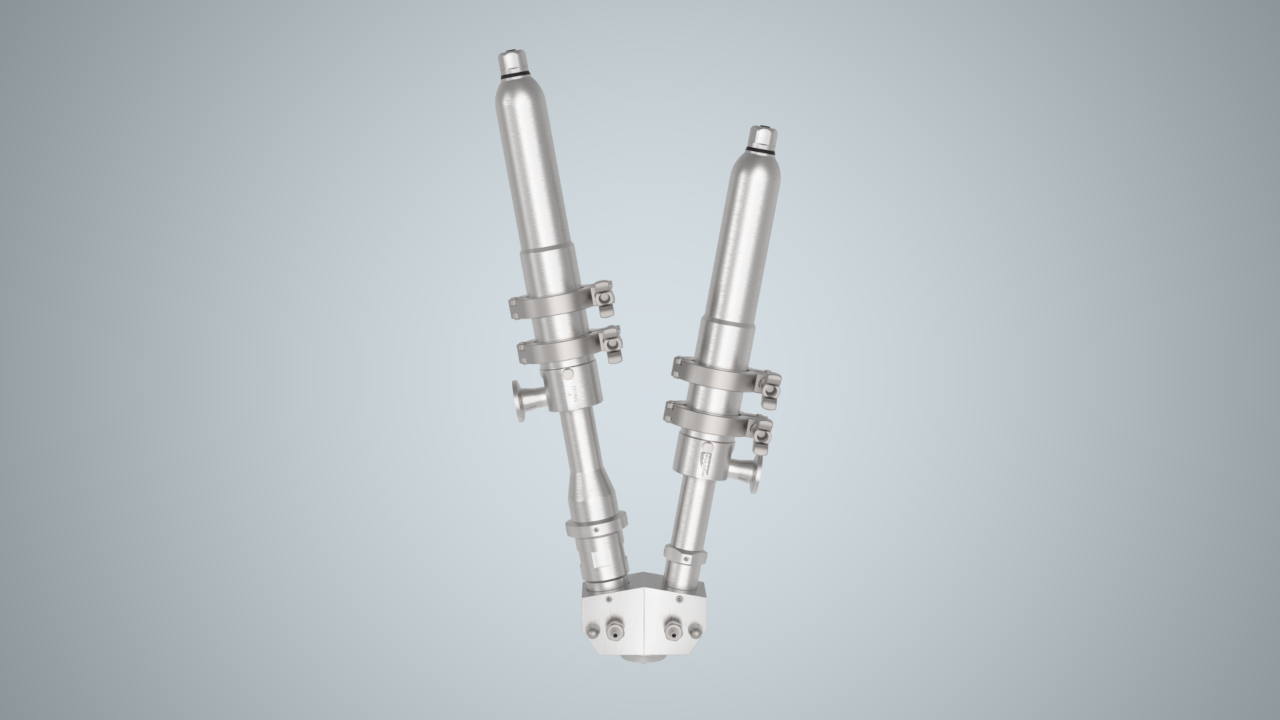

2-component filling pumps and multiple fillers

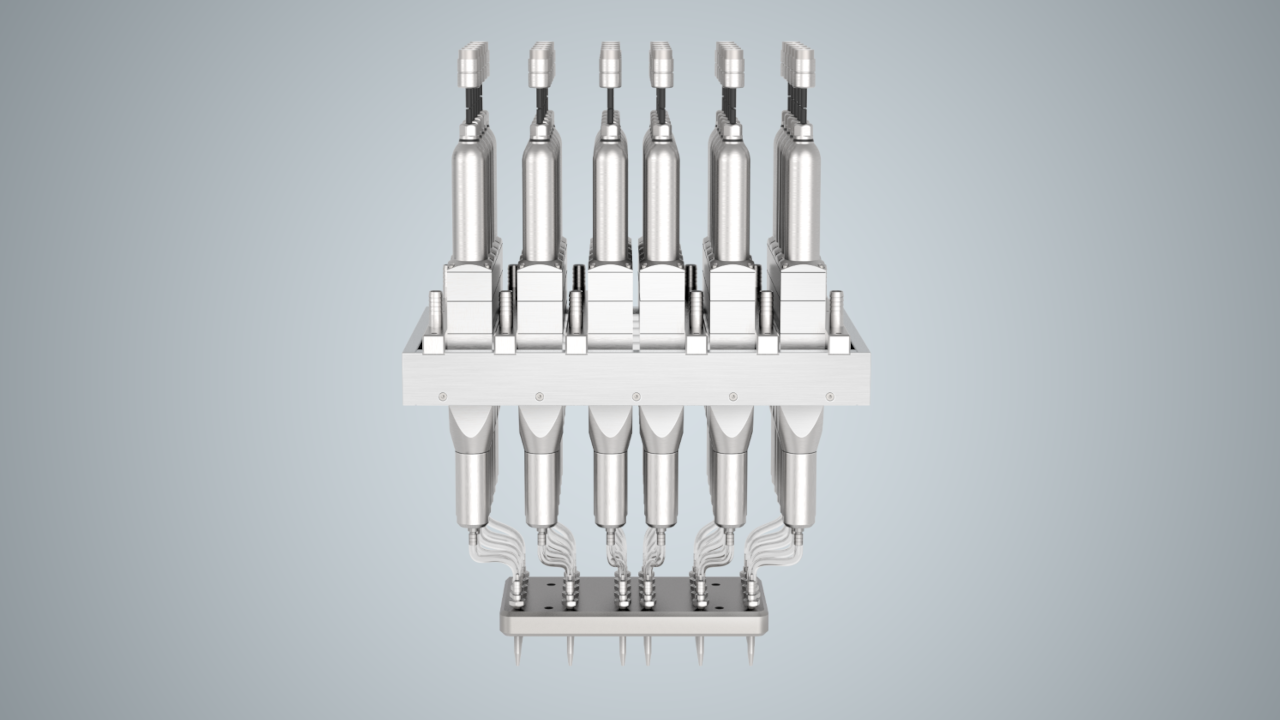

VHD-Q for multi fillers
- Compact design for multi fillers with narrow gauge
- Modular design with individually adjustable number of dispensers
- Dosing volumes 0.1 ml/rev – 20 ml/rev
- Cycle times from 0.5 sec for watery to medium viscous fluids
Further information? Find out the advantages of fully automated filling lines.
You want to fill high-viscosity and/or abrasive media from large containers into small pails? With ViscoTec metering systems / filling systems you can fill cartridges, tins or buckets reliably and in a way that is gentle on the product.
We are equipped to meet every challenge in the field of product delivery, as certain factors play a significant role in this area: for example, high temperatures during a hot delivery procedure or CIP and SIP require a good deal of know-how when it comes to selecting elastomers and seals. All our delivery systems can be used for semi-automatic and fully automatic delivery tasks.
Even solid-containing materials can be filled absolutely shearsensitive and precise. Due to the gentle endless piston principle, material properties remain completely. Continuous dosing, free of pulsation and constant even at variable back pressures – that is our speciality. If the product is viscous, abrasive or contains solids too, or if it requires gentle dosing due to its shear sensitivity, our dosing pumps and mixing heads are your first choice. We cover dosing flows of just a few μl/min up to several 1000 l/h.
