Preparing Systems

For a perfect dosing process

ViscoTec preparation systems, processing plants or degassing systems enable fluids and pastes to be prepared and supplied evenly and reliably without any interruption from a pail replacement and allow the material to be optimally prepared for the production process, too. Homogeneous pastes and liquids free of air and bubbles are crucial when it comes to implementing a reliable dosing process. Our ViscoTreat degassing station enables you to eliminate bubbles even from fluids with a viscosity of 1,000,000 mPas. Our special procedure allows us to continuously extract the degassed product from the tank under vacuum so the product does not come into contact with air again once it has been degassed.

Units for material preparing and processing

Homogeneous and air-free pastes and liquids for a reliable dosing process.

  • Cartridge sizes: 300 ml to 80 l
  • Withdrawal capacity: max. 810 ml/min
  • Viscosities: up to 2,000,000 mPas

Let us test your material on our degassing system, to optimise your production process.

Preparing Systems

ViscoTreat-R
Aufbereitungssystem und Zuführsystem für flüssige Materialien ViscoTreat-R
  • Container size: 2,5 l, 15 l, 25 l and 80 l
  • Viscosity: up to 400,000 mPas
  • Dosing volume: from ~1.7 to ~13.5 ml/rev
3D PrintingAerospaceAutomotiveCosmeticsELectronicsE-MobilityFoodGeneral IndustryMedical TechnologyPharmaceuticalsAbrasive MaterialsAnd other branches - Contact us!

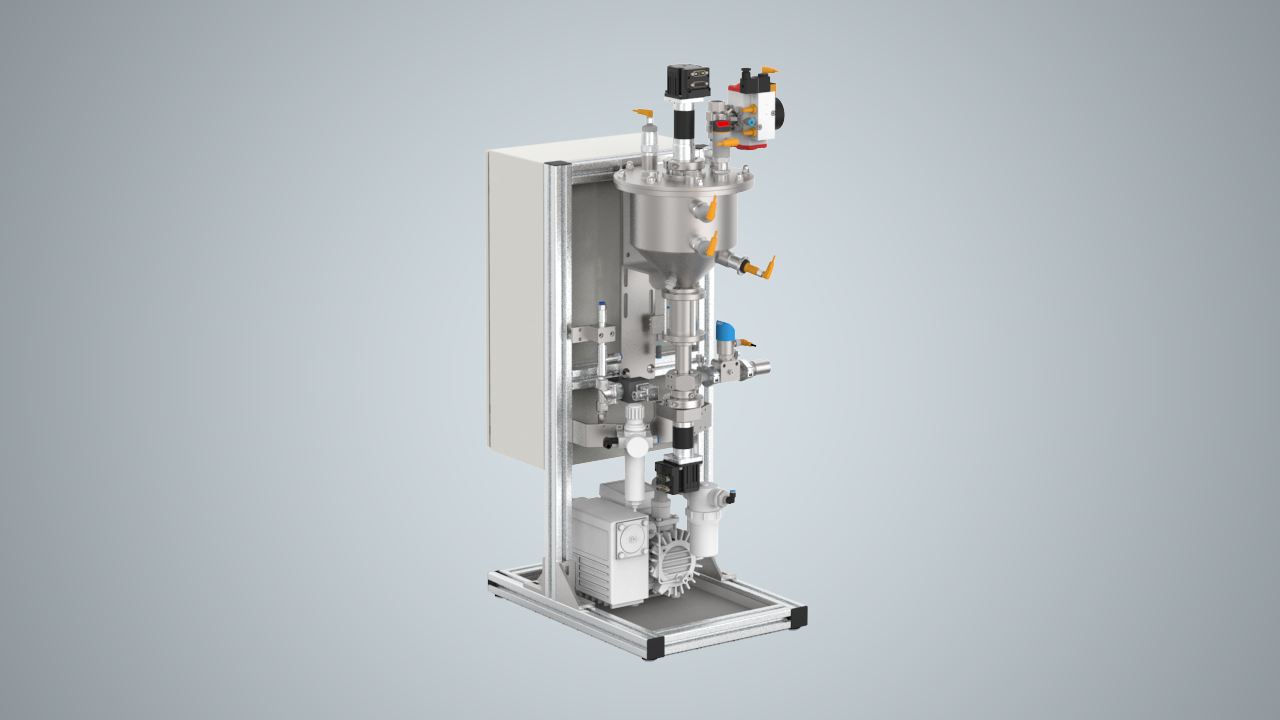

ViscoTreat-Im
Processing system and supply system for liquid materials ViscoTreat-Im
  • Container size: 2.5 l
  • Viscosity: up to 200,000 mPas
  • Volume flow: approx. 0.4 to 105 ml/min.*
3D PrintingAerospaceAutomotiveCosmeticsELectronicsE-MobilityFoodGeneral IndustryMedical TechnologyPharmaceuticalsAbrasive MaterialsAnd other branches - Contact us!

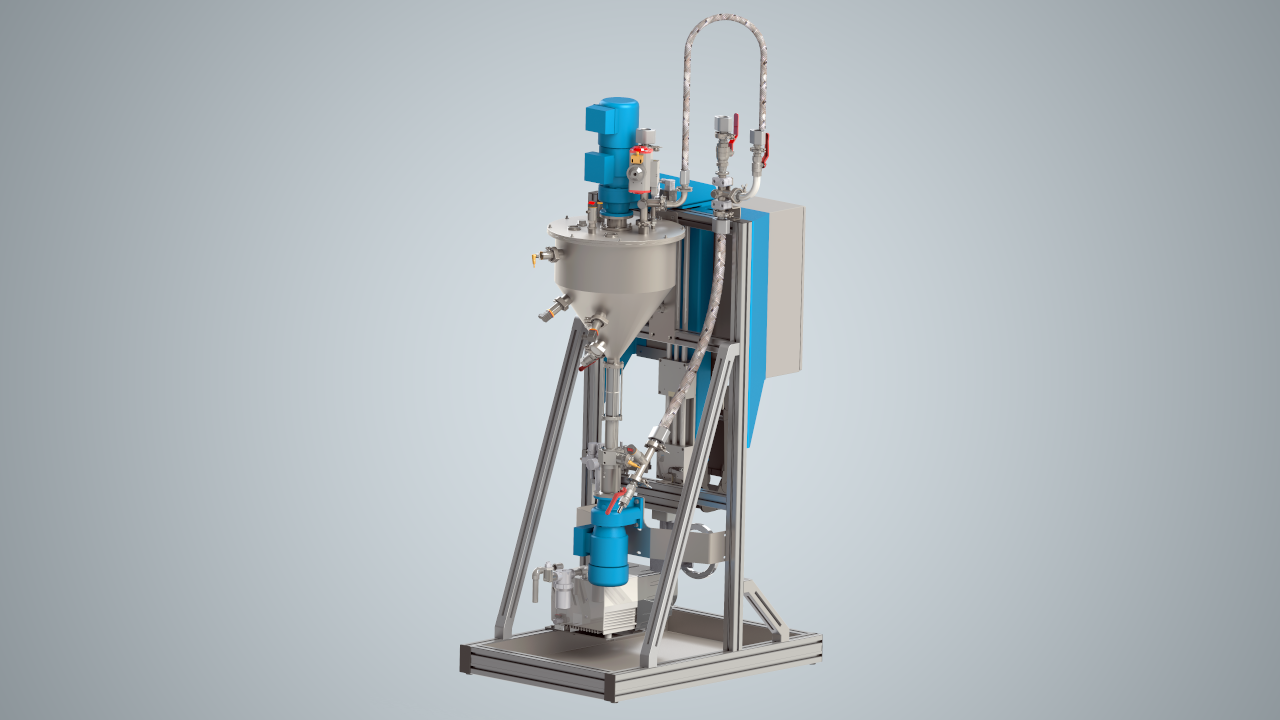

ViscoTreat-Inline
Processing system and supply system for liquid materials ViscoTreat-Inline
  • Container size: 15 l and 25 l
  • Viscosity: up to 1,000,000 mPas
  • Volume flow: approx. 144 to 910 ml/min.*
3D PrintingAerospaceAutomotiveCosmeticsELectronicsE-MobilityFoodGeneral IndustryMedical TechnologyPharmaceuticalsAbrasive MaterialsAnd other branches - Contact us!
Material supply ViscoTreat
Preparation system and feed system for liquid materials ViscoTreat product supply tank
  • Container size: 2.5 l
  • Viscosity: up to 200,000 mPas
  • Volume flow: approx. 0.4 to 105 ml/min.*
3D PrintingAerospaceAutomotiveCosmeticsELectronicsE-MobilityFoodGeneral IndustryMedical TechnologyPharmaceuticalsAbrasive MaterialsAnd other branches - Contact us!

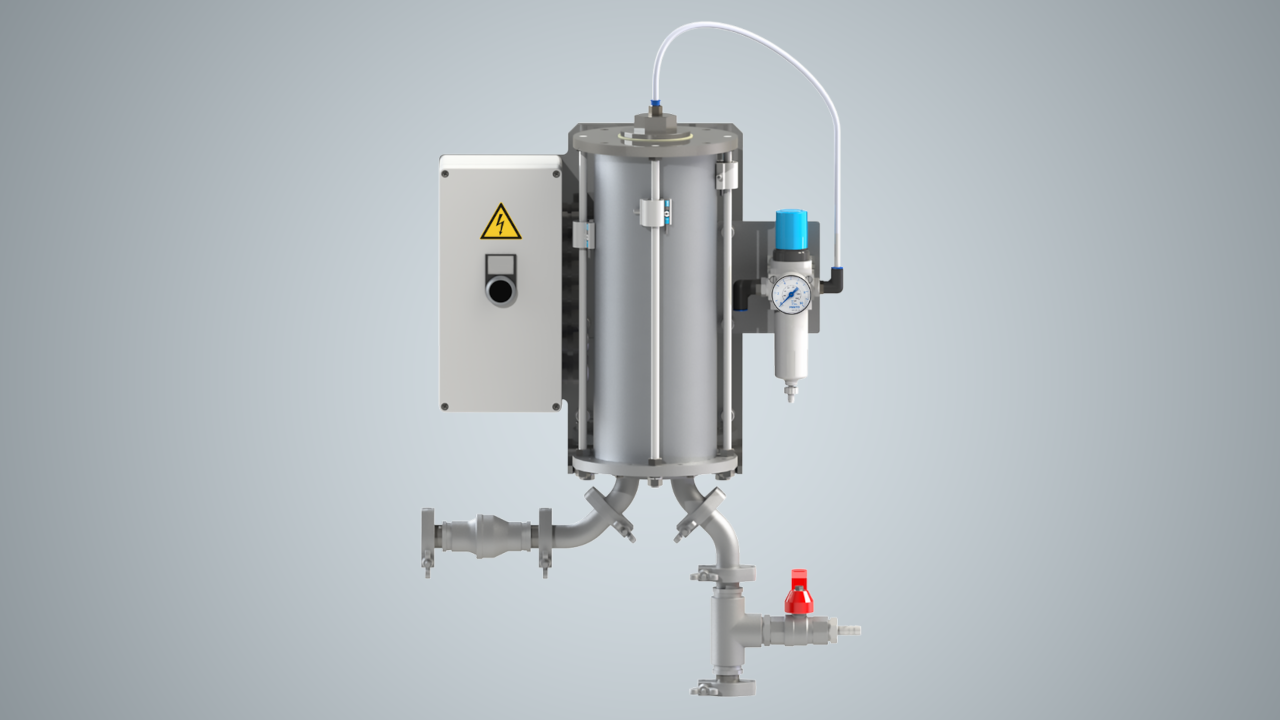

Hydraulic accumulator ViscoTreat-H
Processing system and supply system for liquid materials ViscoTreat hydraulic accumulator
  • Container size: 300 ml
  • Viscosity: up to 200,000 mPas
3D PrintingAerospaceAutomotiveCosmeticsELectronicsE-MobilityFoodGeneral IndustryMedical TechnologyPharmaceuticalsAbrasive MaterialsAnd other branches - Contact us!
* depends on the dosing material

Let us find out which system is best suited to you.
