We master the challenges of the most difficult materials
Our dispensing systems, based on the endless piston principle, offer excellent conditions for processing all low to high viscosity 1- and 2-component materials, such as gap fillers and liquid sealants or in potting and bonding applications.
In this interview, our specialists clarify many questions about dispensing applications in electromobility.

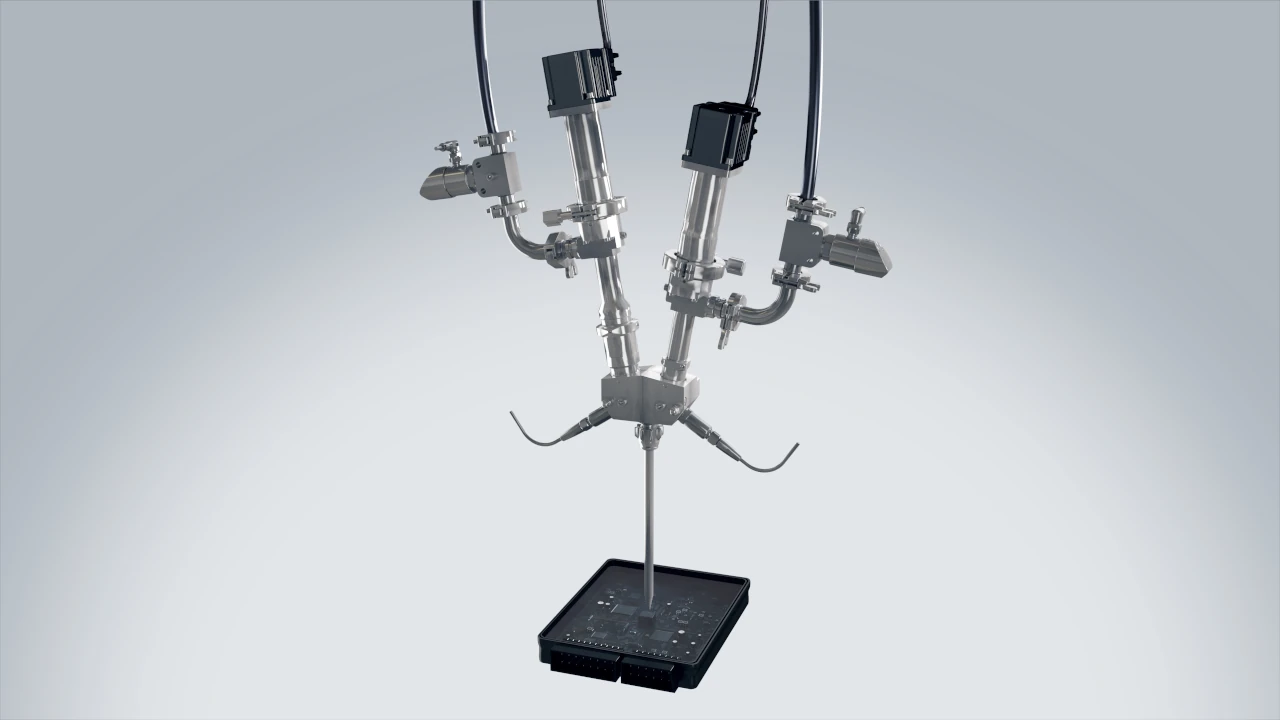

In the video, the application diversity of our dispensing technology in the production of electric vehicles becomes clear:
We have summarized some application examples here:
- Battery cell manufacturing, e.g. electrolyte filling
- Battery module and battery pack production, e.g. housing sealing
- Thermal management, e.g. thermal paste application
- Impregnation, e.g. trickling onto stator or rotor coils
- Fuel cell manufacturing, e.g. sealing on bipolar plate
- Bonding, e.g. bonding of battery carrier
- Potting, e.g. cell potting to fix the cell in place
- Sealing, e.g. inverter housing
Production of battery cells in E-Mobility
For safety and functional reasons, it is imperative to ensure degassed dispensing when filling batteries in e-mobility production. ViscoTec dispensing systems guarantee that no air is introduced into the material during filling. The repeatability of our systems is >99 %. Low material loss due to an optimized discharge system ensures optimized processes.

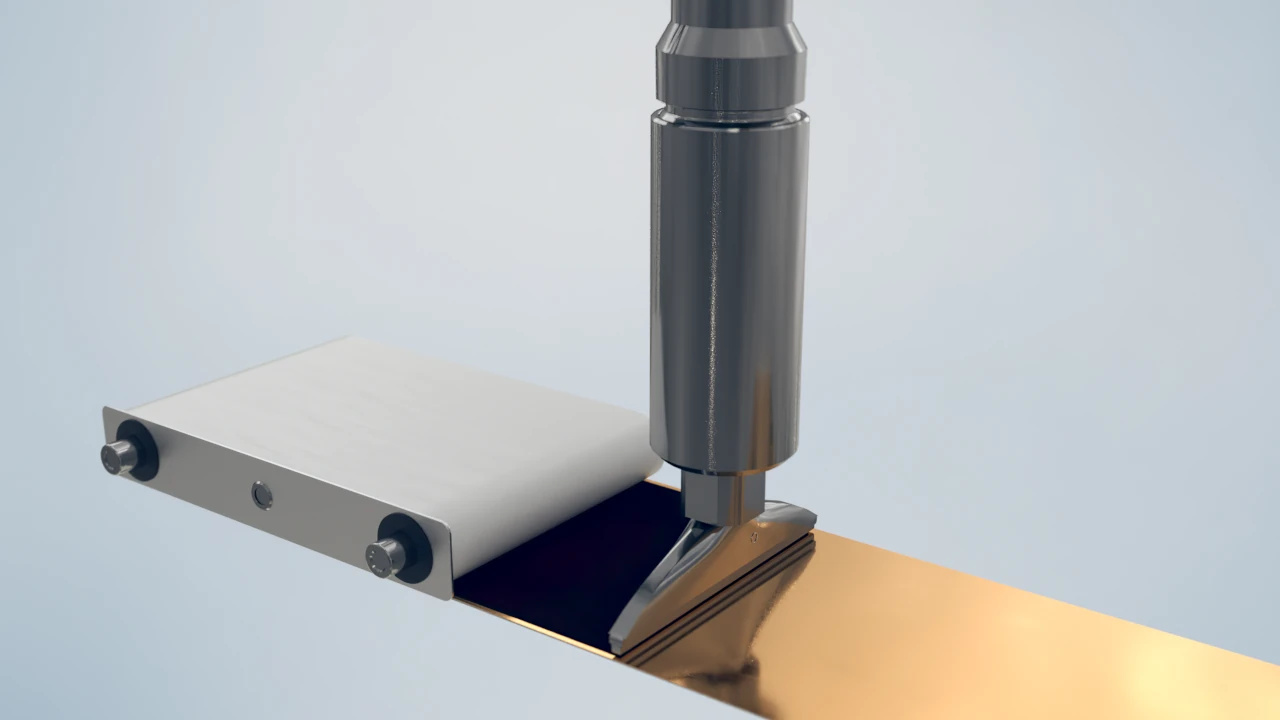

Furthermore, in battery production, highly accurate and reproducible application of the slurry is one of the key processes. ViscoTec offers many advantages here:
- Easy integration into already existing machines and systems
- Highly accurate application of the slurry
- Continuous dispensing process with endless piston technology
- Dispensing of low to high viscosity material (up to 7,000,000 mPas)
The metal-free dispenser can be used for filling the cells with a highly reactive electrolyte. This guarantees process reliability and an absolutely precise filling process. The metal-free dispenser is also used for other reactive materials, such as:
- Ionic Liquids
- Anaerobic adhesives
- Sulfur and chlorine based electrolytes
- Sulfuric Acid
Here is a video about battery cells potting with Polytec material.
And here is a video about battery cells potting with Wevo material.
Battery module & battery pack production in e-mobility
As a safe, cost-effective and flexibly applicable sealing technology, ViscoTec’s volumetric dispensing technology has already proven itself over the last few decades.
Adhesive and sealing applications are also state of the art in the housing seals of battery management systems and battery packs in e-mobility. ViscoTec products are used in 1- and 2-component applications. The outstanding controllability is flexible and simple to use. In addition, heat input into the battery cells is prevented by avoiding or reducing welding processes.

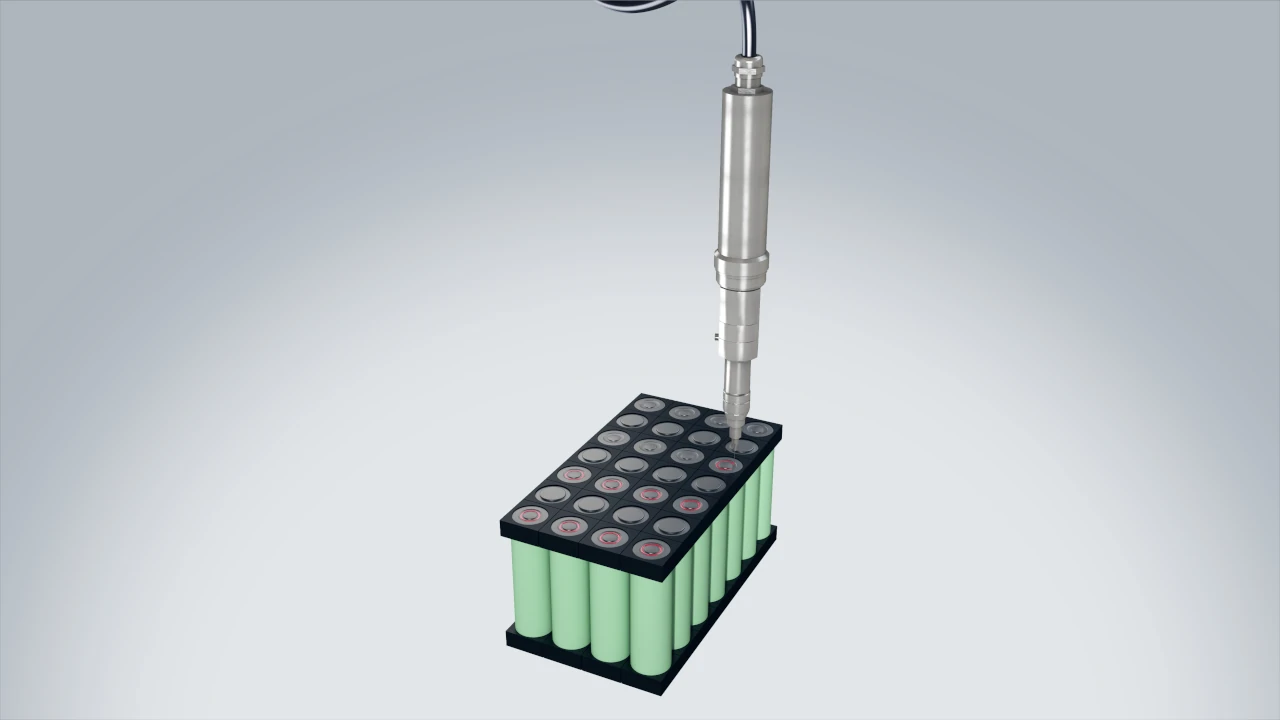

Potting or adhesive applications ensure the assembly of the individual battery cells in the assembly aids or on contacting elements. This applies to both 1- and 2-component. For safe material handling during the process, without dripping material.
Battery management systems in e-mobility are encapsulated to increase service life. This serves to protect them from external influences (such as moisture, dirt, vibration, etc.). And to improve their own properties (such as heat dissipation). We handle 1- and 2-component materials. Important: No air is introduced into the material during dispensing.
Here is an application video on YouTube.

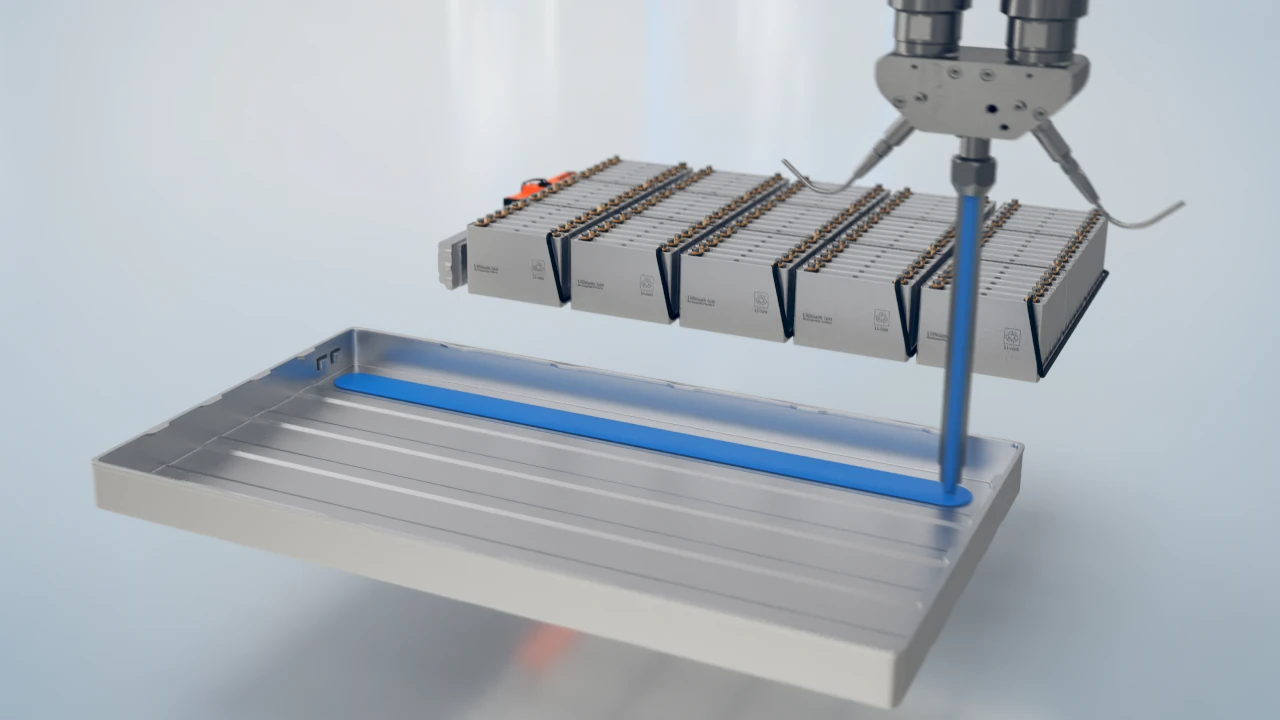

Heat management / Application of thermal paste
Our dispensing pumps carry out the application and injection or filling by injection of TIMS or gap fillers onto and into battery modules or electronic components with absolute process reliability and repeatability. With both 1- and 2-component materials.
The result is continuous, repeatable dispensing that is gentle on the material – regardless of its viscosity. Our ceramic rotor ensures long service lives even when using highly abrasive materials.

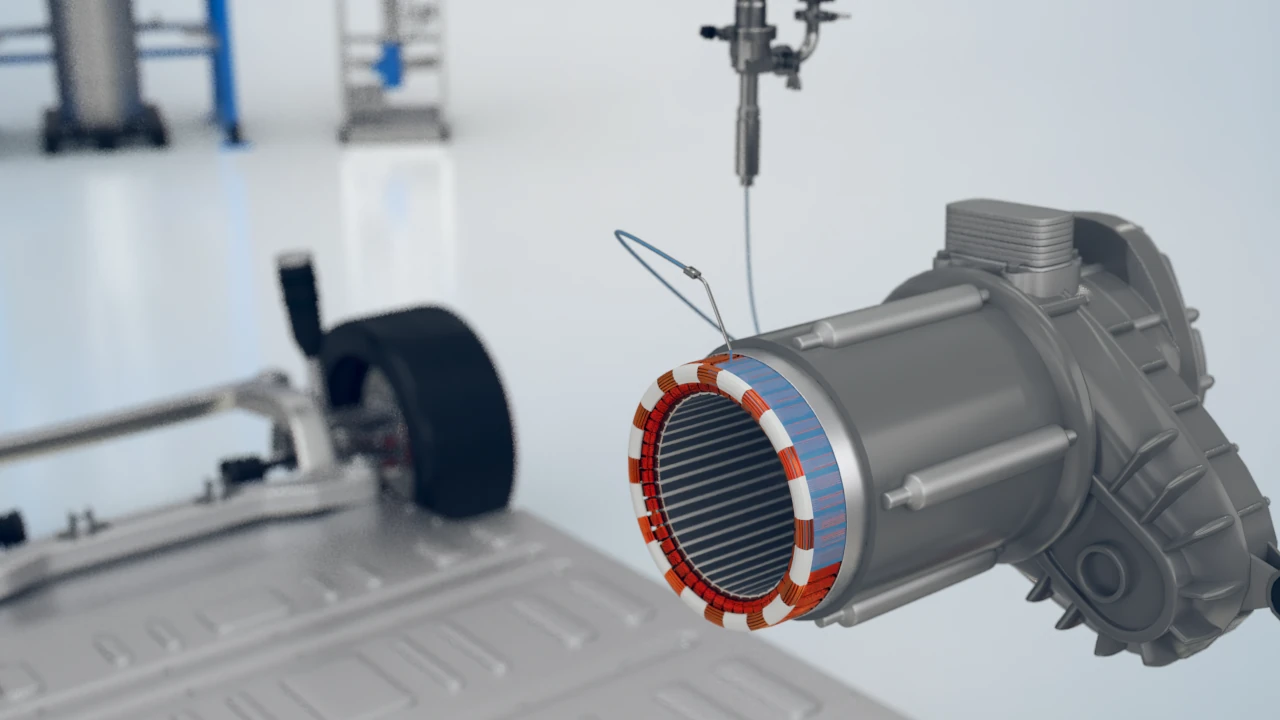

Impregnation of stator and rotor coils / Trickle impregnation
To protect and to increase the performance of the coils, they are impregnated with a resin during production of the electric motor (stator and rotor). The resin is applied to the coils via one or more nozzles. The trickling process offers the decisive advantage of applying the exact amount of resin required at precisely defined points. The result is a high impregnation quality – coupled with a clean and material-saving process.
- Perfectly prepared drip resin: Degassed, homogeneous, temperature-controlled.
- Safe material handling during the process, no unintentional dripping
- Easy programming of the dispensers, thanks to proportionality between speed and material output
- You can find more information about this application in our whitepaper.
Here you can see the video about our trickling system on youTube.
Fuel Cells Manufacturing
We deal with different dispensing applications in fuel cell manufacturing, such as sealing of bipolar plates. Our dispensers create reliable connections for extra durable cells.
Examples of use are:
- Dispensing of an adhesive and sealing bead on bipolar plates
- Continuous application to a membrane
For more information on dispensing technology in fuel cell manufacturing, see our white paper.
- Dispensing without influencing the fillers (such as hollow glass beads)
- Cost and quality control through reproducible dispensing
- Dispensing in horizontal and vertical positions
Here you can see the video on YouTube.
To improve service life, electronic components such as electronic housings, connector housings and FFCs (flat-flex cables) are encapsulated. This serves to protect them from external influences (such as moisture, dirt, vibration, etc.). And to improve their own properties (such as heat dissipation). We apply 1- and 2-component materials. Important: No air is introduced into the material during dispensing.
Volumetric dispensing technology has already proven itself over the past decades as a safe, stable, cost-effective and flexible sealing technique.
- Controllability is flexible and simple to use
- Consistently uniform sealing bead even with complex geometries
- No heat input into battery cells due to avoidance of welding processes
Here is the application video on YouTube.
