Effective solutions for the most demanding hygiene and cleaning requirements
Are you looking for the ideal dosing technology for low to high viscosity pharmaceutical products? High-precision and shear-sensitive filling, conveying, and dosing – this is what we guarantee with our products. In the Pharma Dispenser series, the requirements of the pharmaceutical industry for hygienic design and documentation are consistently implemented.
We solve complex dosing tasks. Depending on the application, various parameters are decisive. For example, pulsation-free for continuous dosing, process reliability for filling particularly highly viscous or abrasive materials, or gentle handling of solids-laden liquids and pastes. Especially when the material to be filled are solids-laden, lumpy, temperature-sensitive, shear-sensitive or sticky, conventional dosing systems quickly reach their limits performance-wise. In addition, the viscosity, dripping behavior, possible thread formation and much more must be taken into account.
Your advantages with ViscoTec:
- Up to 5,000,000 mPas regardless of viscosity
- Dosing accuracy ± 1 % starting from small quantities of 0.05 ml
- Gentle filling of structurally sensitive or abrasive material
- Programmable suck-back for defined thread breakage and drip-free dosing
- Wetted components can be autoclaved
Application examples from the pharmaceutical industry

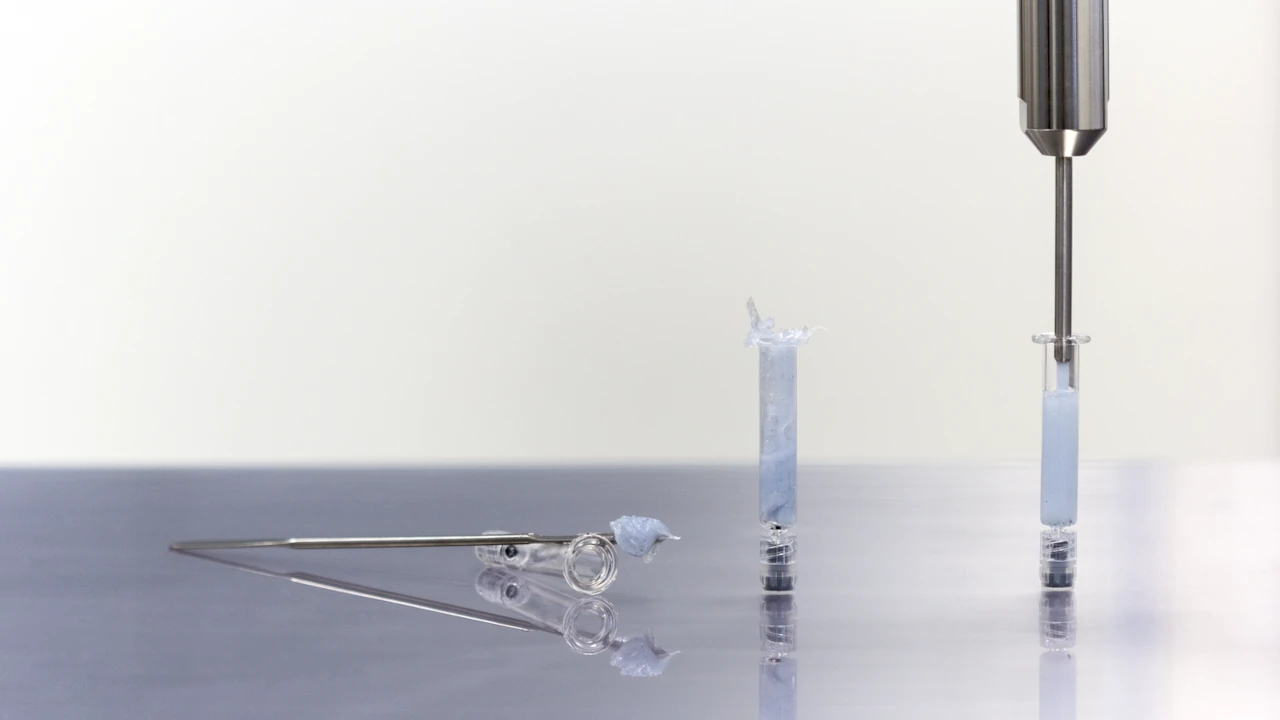

Filling semi-solid products cleanly and gently into dosing syringes
Half-hard products, so-called semi-solids, are, for example, ointments, creams or gels. The materials are not free-flowing. Nevertheless, they often have to be filled into syringes for easier dosing for the end user. Often the quantity to be filled is single doses in the µl range.
With our Pharma Dispensers, the filling of syringes can be done semi-automatically. The advantages of this are that filling is clean, gentle on the product, and highly precise. Thanks to the reversible direction of rotation or the programmable suck-back at the end of dosing, the material is retracted into the dosing needle in a defined manner. This ensures an absolutely clean thread break. Another positive effect: Contamination of the packaging with the dosing material is therefore prevented.
Dosing of suspensions containing solids
Thanks to the uniform volume flow of our technology, the suspension in the pharmaceutical dispenser remains homogeneous. In the pharmaceutical industry, the endless piston principle offers a solution for applications that are difficult or impossible to implement with piston or peristaltic pumps. Precise dosing or pulsation-free conveying can be optimally implemented: Even at high counter pressures, from liquid to highly viscous, with filled or abrasive products.
